YKR-CR3399-V1 core board is designed based on Rockchip's RK3399K processor. It contains 2 ARM Cortex-A72 cores with a main frequency of 1.8GHz and 4 ARM Cortex-A53 cores with a main frequency of 1.4GHz. The GPU uses Mali-T864 and supports OpenGL ES 1.1/2.0/3.0/3.1, OpenVG 1.1, OpenCL and DX11. It has 2GB LPDDR3 RAM and 16GB eMMC ROM on board. The core board has multiple display interfaces, including HDMI 2.0, MIPI-DSI, eDP 1.3 and DP 1.2, with a maximum resolution of up to 4K, and supports dual-screen same display and dual-screen different display. At the same time, the core board also provides a variety of peripheral interfaces, such as PCIe, USB3.0 Host, Type-C, MIPI-CSI, SPDIF, I2C, SPI, UART, ADC, PWM, GPIO and I2S (supporting 8-channel digital microphone array input), as well as Gigabit Ethernet.
HARDWARE INDEX
| size | L54mm x W46mm x H3.2mm |
| CPU | ROCKCHIP RK3399 Six-core A72 Dual + A53 Quad |
| GPU | Mali T860 MP4 |
| RAM | DDR3 standard 2GB (4GB batch optional) |
| memory | eMMC 5.1 comes standard with 16GB (8GB/32GB/64GB are available in batches) |
| power management | RK808-D |
| Operating Voltage | Above 5V 2A |
| support system | Android 7.1/8.1/Ubuntu16.04/Linux+QT |
| operating temperature | -10 to +75 degrees |
| life | Continuous operating life is more than 5 years |

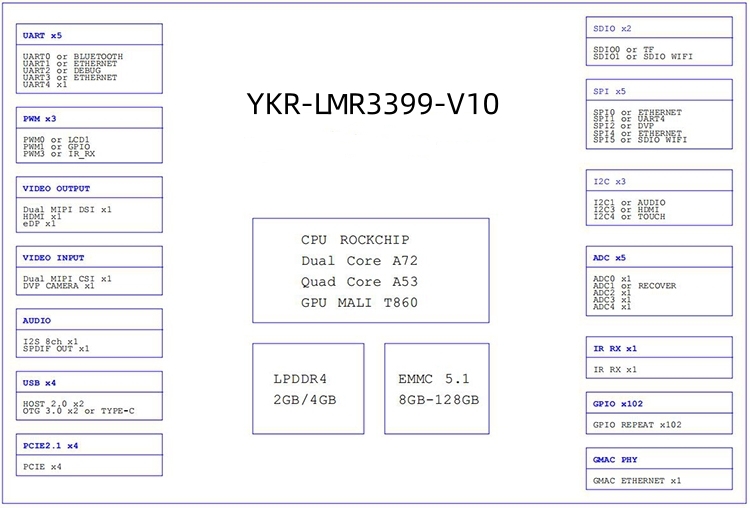

COMMONINTERFACE
| USB2.0 | 2-way USB2.0 |
| USB3.0 | 2-way USB3.0 or 1-way TYPE-C |
| TYPE-C | 1-way TYPE-C |
| UART serial port | 5 serial ports |
| GPIO interface | Multiplexable GPIO up to 75 |
| PWM interface | 3-way PWM |
| MIPI DSI | Support 8 Lane up to 2K/4K |
| MIPI CSI | 2-channel CSI supports up to 2-channel 1300W |
| HDMI display | HDMI high-definition output supports 4K/1080P display |
| SDIO interface | 1 channel SDIO interface |
| ADC interface | 3-way analog ADC input interface |
| I2C interface | 3-way I2C interface |
| I2S interface | 1 channel I2S interface |
| SPI interface | 5-way SPI interface |
| Ethernet | PHY interface, baseboard plus PHY chip can expand 10/100/1000 Ethernet |
| TF card | 1 channel TF card |
| System Upgrade | Support USB/TF card local upgrade |
CORRENT PARAMETER TABLE
| Project | Minimum | Typical | Maximum |
| Power parameters | Voltage | 6.5V | 12V | 15V |
| Ripple | -- | 50mV | 100mV |
| Electric current | 212mA | -- | -- |
Power supply current (no other peripherals connected) | Working current | 223mA | 369mA | 912mA |
| Play sound |
| 321mA |
|
| Connect HDMI boot current |
| 345mA |
|
Power supply current (Connect display screen) | 5 inch 720*1280 |
| 465mA |
|
| Environmental Science | Relative humidity | -- | 65% | 75% |
| Working temperature | -10℃ | -- | 75℃ |
| Storage temperature | -30℃ | -0℃ | 100℃ |
