CPU: RK3568
Architecture: Cortex-A55
Main frequency: 1.8GHz/2.0GHz
Memory: 1/2/4GB DDR4; 4/8GB LPDDR4X
ROM: 8/16/32/64/128/256GB eMMC
System: Android11, Linux, Ubuntu, Debian 11, OpenHarmony4.1

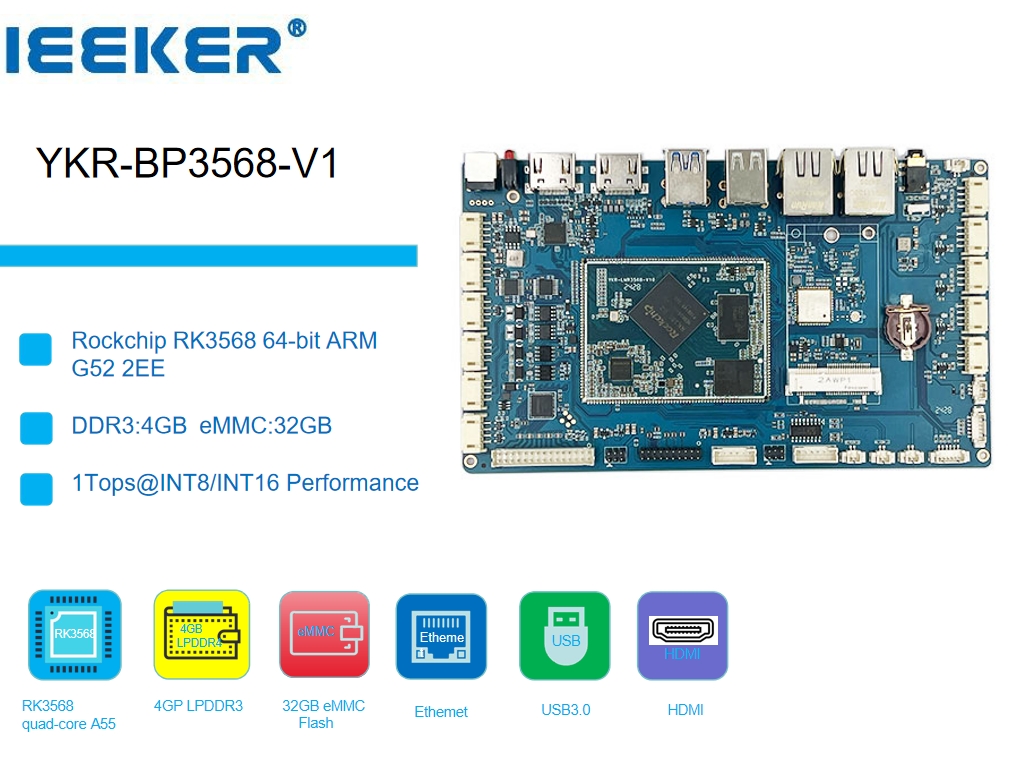

Rockchip YKR-BP3568-V1 Android board adopts the method of core board plus baseboard peripheral interface board. The baseboard can be designed to facilitate customer modification and secondary development. It is suitable for artificial intelligence, face recognition, smart large screen, Internet of Things gateway, industrial detection and other fields, mainly including face payment, industrial robots, tablet computers, security monitoring, medical equipment, self-service terminal equipment, gate channel, vehicle-mounted central control and other products.
YKR-BP3568-V1uses Rockchip RK3568 master control, integrated quad-core Cortex-A55 processor, equipped with the new Armv8.2-A architecture, which effectively improves performance;
GPU is MailG522EE dual-core architecture, supports 4K decoding and 1080P decoding, supports CBRVBR, FxOp, AVBR, and QpMap, supports ROI encoding; image AP supports OpenGLES3.2, 20, 1.1 Vulkan1.1; the main frequency is up to 2.0GHz;
Product specifications
| CPU | RK3568 |
| frequency | Quad-core A55 (2 GHZ) |
| memory | 2GB, hardware compatible 4GB |
| memory | 16GB EMMC |
| Power management chip | Use RK809, support dynamic FM, etc |
| GPU | ARM G52 2EE
support OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1
Embedded high-performance 2D acceleration hardware |
| NPU | Support 0.8T computing power |
| multimedia | Supports 4K 60FPS H.265/H.264/VP9 video decoding
Supports 1080P 60fps H.265/H.264 video encoding
Supports 8M ISP and HDR |
| Support display | MIPI7 inch screen, LVDS7 inch screen, LVDS10.1 inch screen, HDMI screen |
Core board parameter
| size | 65mm*55mm |
| Core plate height | 0.26cm inside with connector |
| Connector model | 80pin AXK5F80347YG AXK6F80347YG 0.5mm |
| Connector height | 1.5mm |
| Storage temperature | -10~40 |
| Working temperature | 0~70 |
| The system supports | Android11, Buildroot +QT, Yocto, Debian |
| Uboot version | Version 2017.09 |
| Kernel version | Version 4.19 |
| interface | support USB2.0/ USB3.0/ PCIE3.0/ PCIE2.1/ SATA3.0/ QSGMII |
| Pin extension | Up to 320 pins, to meet various user expansion needs |

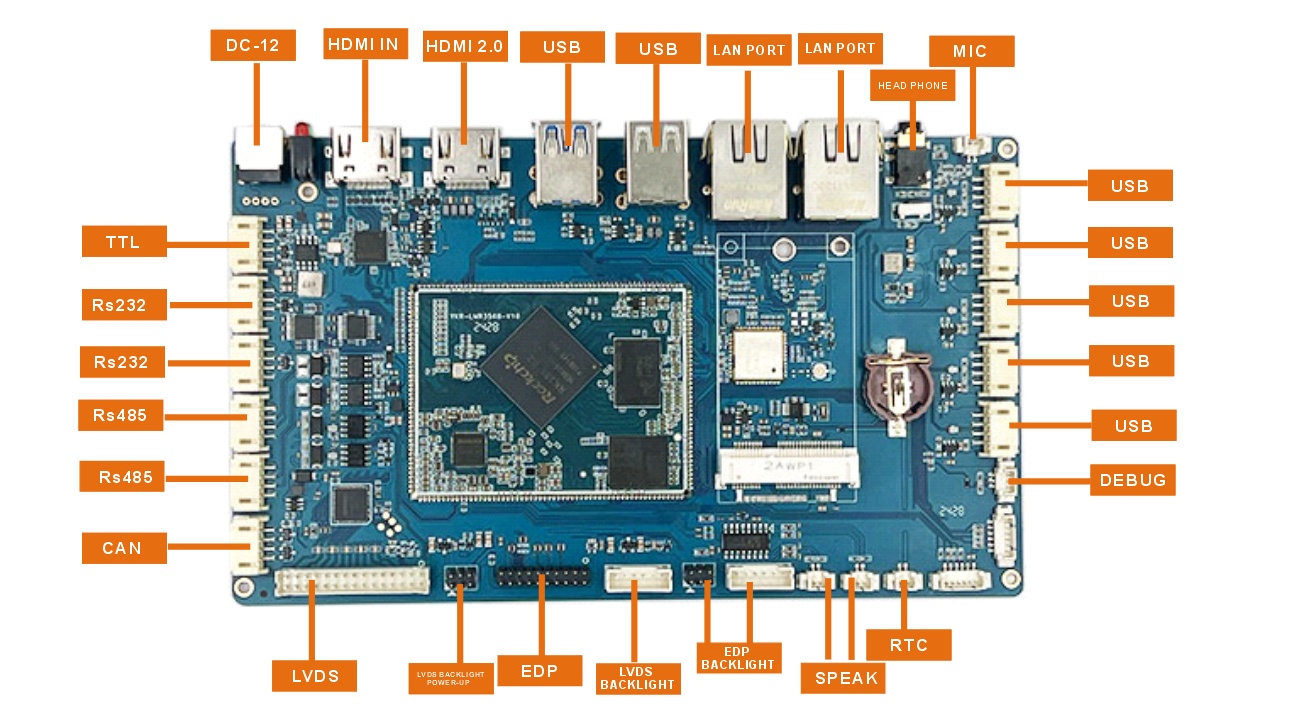

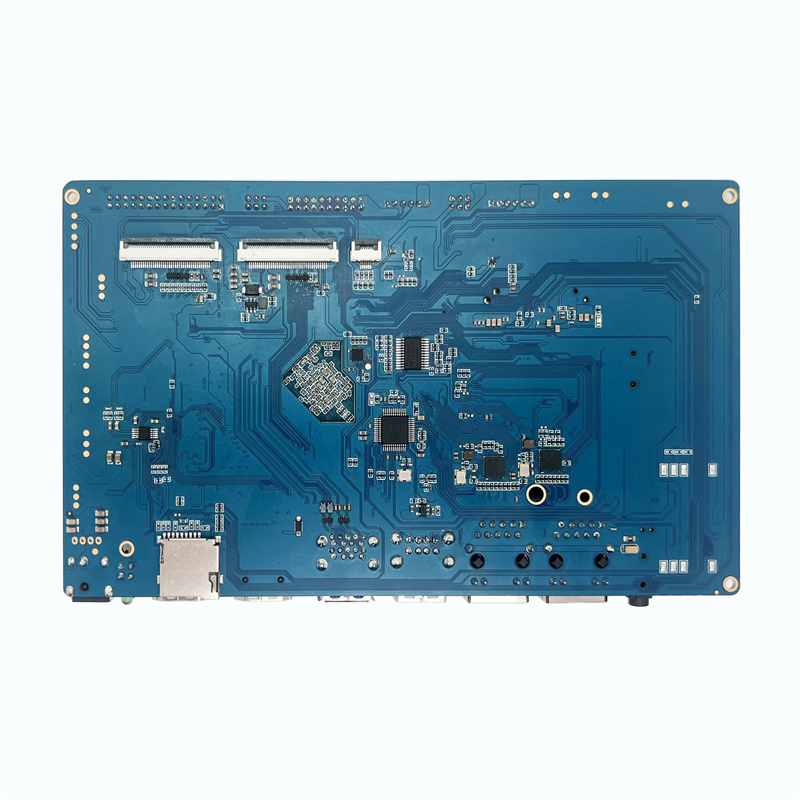

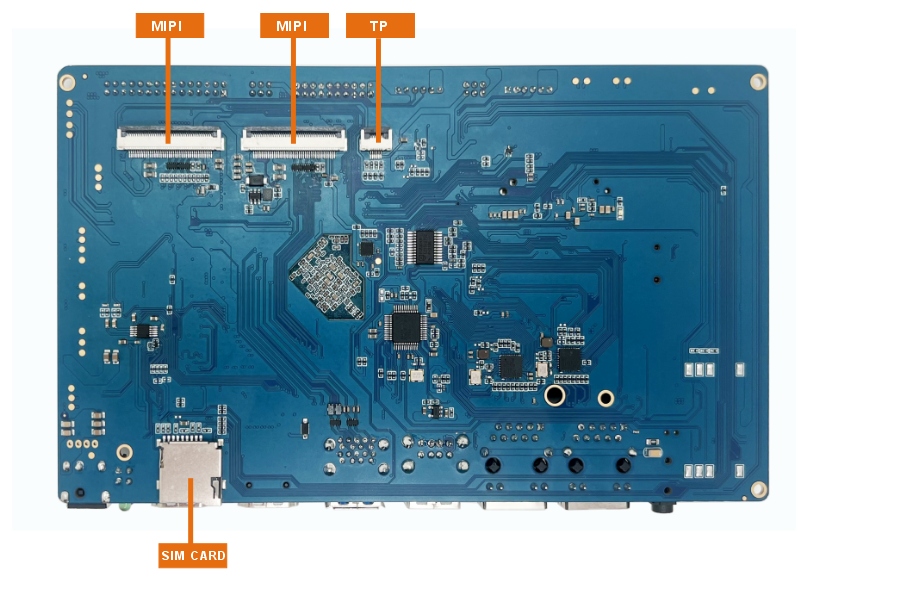

Backplane parameters
| size | 190mm*125mm |
| POWER | Dc power input port |
| SWITCH | The power switch |
| Ethernet | 2 gigabit industrial-grade Ethernet, RJ45 interface |
| USB HOST | 2 channels USB2.0 with integrated PHY |
| WIFI/BT | support |
| MINI PCIE | 4G modules that can connect to mini PCIE ports and provide PCIE2.0 single channel |
| 4G module | Supported (Optional) |
| Mini PCIE | 4G modules that can connect to mini PCIE ports and provide PCIE2.0 single channel |
| PCIE3.0 interface | PCIE bus port for PCIE device expansion |
| USB OTG | 1 road start OTG |
| USB3.0 | USB HOST3.0 interface |
| USB2.0 | Two USB HOST2.0 ports |
| CAMERA interface | 1 MIPI CSI (4 channels) with PHY |
| MIPI-DSI interface | 1 MIPI CSI (4 channels) with PHY |
| EDP interface | 1 MIPI CSI (4 channels) with PHY |
| LVDS interface | 1 MIPI CSI (4 channels) with PHY |
| SATA interface | SATA signal, power interface |
| SIM Card | 1 |
| Separate button | 6 |
| RTC | Separate button |
| TF Card | 1 |
| TTL-UART | 2 way |
| 232-UART | 1 way（Debug UART） |
| RS485 | 1 way |
| CAN | 1 way |
| PHONEtd> | Support headphone output |
| MIC | Support MIC input |
| RTC | Real time clock |
| VGA | 1 way |
| Infrared receiver | HS0038 Infrared integrated receiver |
| Led | 1way |
| SARADC | support |
