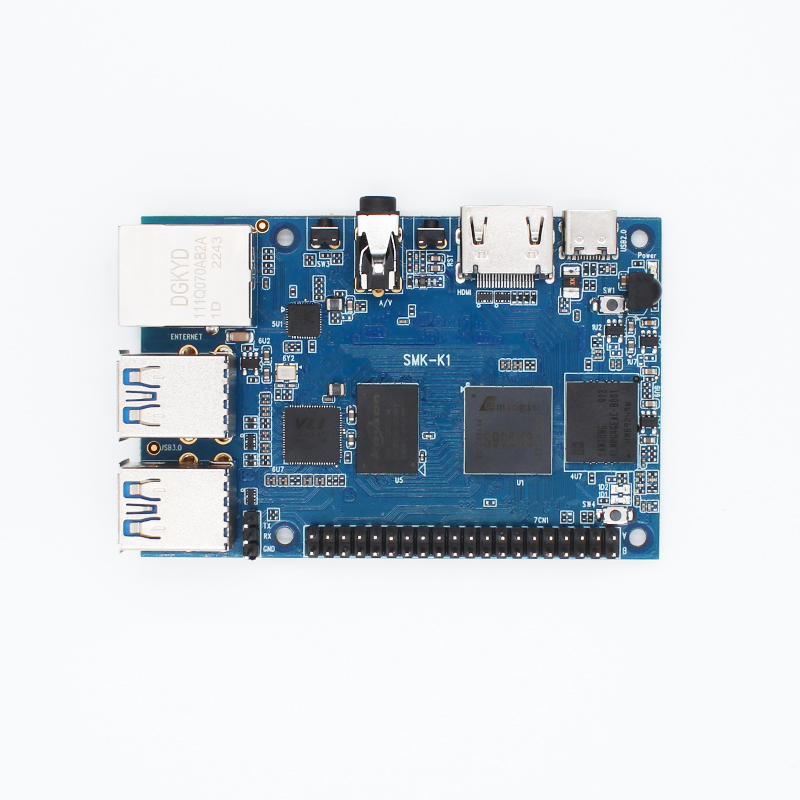

YKR-IPX3-V2 is a powerful quad-core 64-bit processor, using advanced Amlogic architecture. The YKR-IPX3-V2 development board is a high-performance embedded system solution suitable for various application development. Equipped with a quad-core 64-bit processor, the main frequency can reach 1.9GHz, supporting 4K decoding and HDR video playback. It has a variety of interfaces, including HDMI, USB3.0, etc., which are convenient for connecting external devices. It supports dual-band Wi-Fi and Bluetooth 5.0, and the network communication is stable and fast. The onboard debugging interface and rich development resources make it easy for developers to quickly customize development and debugging. The YKR-IPX3-V2 development board is an ideal choice for rapid development of embedded systems.
硬件参数

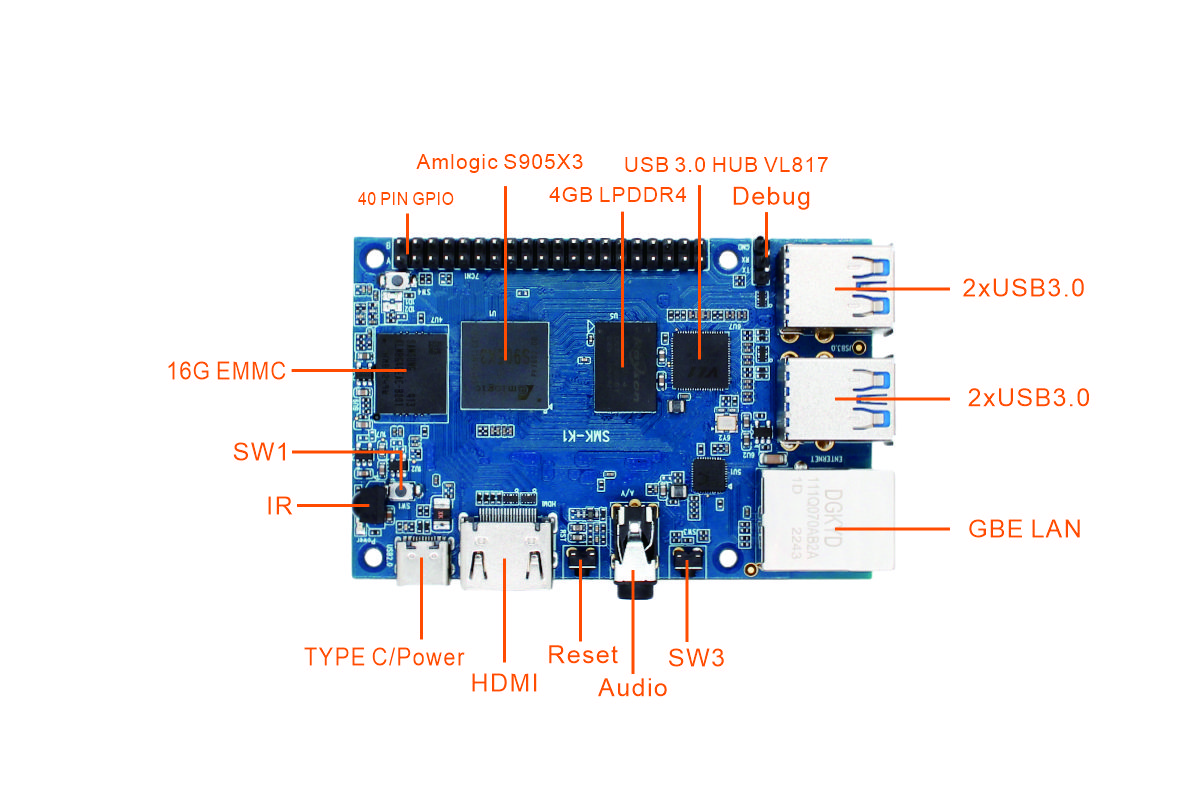

HardWare Specification of YKR-IPX3-V2 |

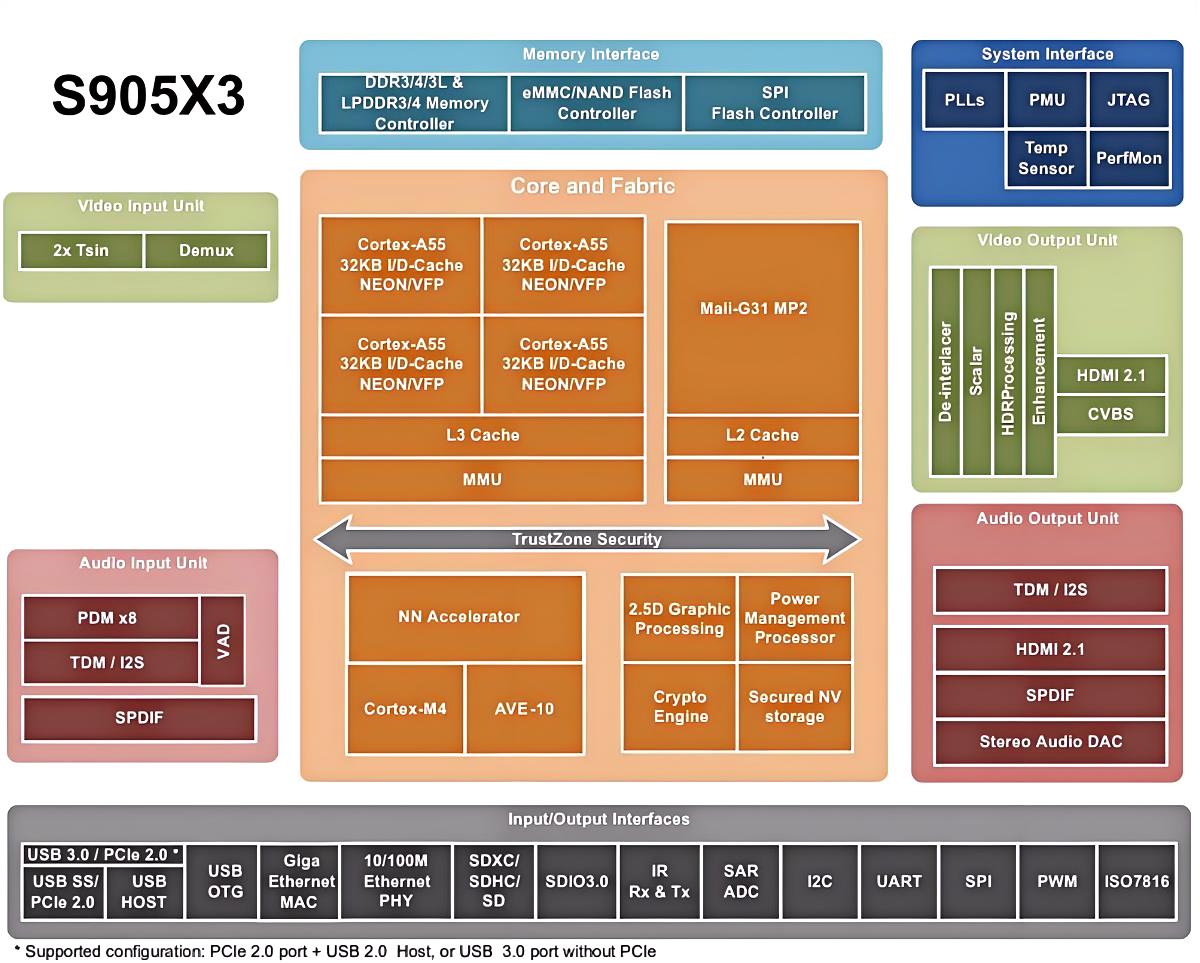

CPU | Amlogic S905X3 Quad-Core Cortex-A55 (2.0xxGHz) |
GPU | Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz) |
Memory | 4GB LPDDR4 |
Storage | MicroSD slot with support for up to 256GB expansion and 16G eMMC flash with support for up to 64GB |
Network | 10/100/1000 Mbit/s Ethernet |
Video Output(s) | 1 x HDMI 2.0 (up to 4K@60Hz with HDR, CEC, EDID) |
Audio Output(s) | 3.5mm jack and 1 x HDMI digital output |
USB ports | USB 3.0 PORT (x4) |
GPIO | 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM |
Switches | Reset, Power and U-boot |
LED | Power Status and Activity status |
Power Source | 5 volt @3A via Micro USB (TYPE C) |
Size & Weight | 85x56mm, 48g |
OS | Android and Linux |
